Description

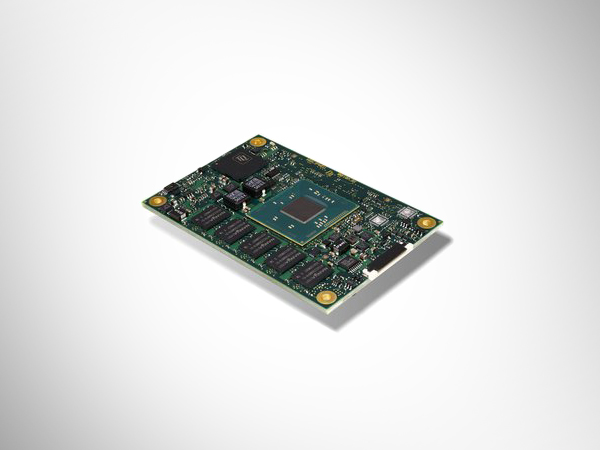

TQMxE38M COM Express™ Minimodule with Intel® Atom™ E3800
The TQ Minimodule TQMxE38M enables the implementation of powerful but also economical x86 based systems based on the international established PICMG™ standard COM Express™ Mini (COM.0 R2.1).At the type 10 compliant pin out the user has access to all fundamental interfaces of the CPU. For that all capabilities of the Intel® Atom™ processor could be used. The direct access to the intefaces like digital display interface (DDI) / embedded DisplayPort (eDP) and the USB device interface gives the user the unlimited freedom to use the features of the CPU in the most suitable way for his application.
The compact and robust design as well as the option of formal coating extends the use cases to applications within rugged industry,railway and aviation environments. Based on the very low power consumption and the extended temperature support it is also possible to realize outdoor applications in an easy and reliable way.
Highlights:
·Intel® Atom™ E3800 (“Bay Trail-I“)
·Up to 8 GB DDR3L with ECC support
·Optimized for ultra low power
·Extended temperature support
·Reach featured uEFI BIOS with easy-config,multi-setup and touch support
·TQMx86 board controller with flexible customization options (flexiCFG)
·TPM 1.2 / 2.0
·iRTC (highly accurate industrial real time clock)
·“Green ECO-Off” (minimum of standby power)
·Watchdog und thermal management
·Highest reliability, 24/7 certified
·Very robust design, formal coating capability
Technical details
CPU
Intel® Atom™ E3800 („Bay Trail-I“)
E3815: 1x 1.46 GHz, 512 KB L2-Cache, 5W
E3805: 2x 1.33 GHz, 1 MB L2-Cache, 3W, without graphics
E3825: 2x 1.33 GHz, 1 MB L2-Cache, 6W
E3826: 2x 1.46 GHz, 1 MB L2-Cache, 7W
E3827: 2x 1.75 GHz, 1 MB L2-Cache, 8W
E3845: 4x 1.91 GHz, 2 MB L2-Cache, 10W
Memory
DDR3L: 2 GB, 4 GB, (8 GB) with ECC support
EEPROM: 32 kbit (24LC32)
Graphics
2x Digital Display Interface (DDI)
for eDP 1.3, DP 1.1a, DVI, HDMI 1.4a
or LVDS (with external converter)
System interfaces
1x Gigabit Ethernet (Intel® i210)
(external IEEE1588 sync optional through TQ flexiCFG)
1x USB 3.0
3x USB 2.0
1x USB 3.0 device
Peripheral interfaces
2x SATA 2.0 (up to 3Gb/s), eSATA capable
3x PCIe 2.0 (up to 5Gb/s)
(4th lane optional, if no Ethernet)
1x LPC bus
1x Intel® HD audio (HDA)
1x I2C, (2nd I2C optional) (master/slave capable)
1x SMBus
1x SPI (for exteral uEFI BIOS flash)
2x Serial port (Rx/Tx, legacy compatible)
(4 wire optional through TQ flexiCFG)
1x SD card interface / optional 8x GPIO (multiplexed)
Security components
TPM (SLB9660 TPM 1.2, alternatively SLB9665 TPM 2.0)
Others
TQMx86 board controller with watchdog and flexiCFG Industrial real time clock (iRTC) Hardware monitor
Power supply
Voltage: 4.75 V - 20 V
4.75 V - 20 V Standby (optional)
3 V Battery / GoldCAP (optional)
Power: typ. 3 - 6 W / max. 12 W
(Green ECO-Off: < 0.1W)
Environment
Extended temperature: -40°C…+85°C
Form factor / dimensions
COM Express™ Mini, type 10, 84 mm x 55 mm
Accessory
TQMxE38M-HSP
Heatspreader for TQMxE38M according to the COM Express™specification
TQMxE38M-HSP-LP
Heatspreader for TQMxE38M, low profile for very flat designs
Evaluation platform MB-COME10-1
Mainboard for COM Express™ Minimodules, Type 10
Interfaces: DP, eDP/LVDS, 2x Gb Ethernet, 4x USB, USB device,
3x COM, audio, mini PCIe, mSATA, 2.5“ SSD, SD card,
riser extension with PCIe and USB, fan, debug
170 mm x 170 mm
TQMx86 software tools
for uEFI BIOS programming and to adapt / configure setup
default values (including multi config), boot logo,…
